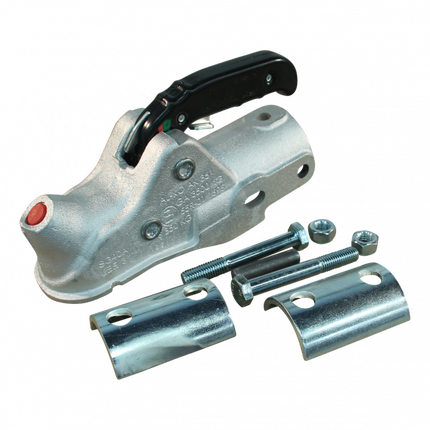

Ball coupling - 3500 KG - Ø60mm - M12 - 16.2 - AK 351

Description

The ball coupling AK 351 Profi for braked trailers up to 3500 kg leaves nothing to be desired in terms of quality and safety. The wear indicator provides information about the condition of the trailer coupling and the car's tow bar.

The safety indicator ensures that you know exactly when the coupling is correctly placed on the ball of your towing vehicle. If the green cylinder is visible when coupled, the coupling is correctly placed on the ball of the towing vehicle.

Technical information

• Brand: AL-KO
• Type: AK351 M12
• Material: Cast iron
• Drawbar connection: Ø 50mm and Ø 60mm
• To be fixed with bolts M16 - horizontal
• D-/Dc-value: 31kN
• Tightening torque: 195Nm
• Maximum nose weight: 150kg
• Suitable for MTM: 3500kg
• ECE type approval ball coupling: E1 55R-01 1595
• Swing damping: no

Options

• An AL-KO Safety-Ball for standstill: when uncoupled, insert the Safety-Ball into the clutch
• Anti-theft protection for driving and standing still: insert the key into the lock cylinder and secure it
• A soft dock protects the rear of the vehicle from damage
