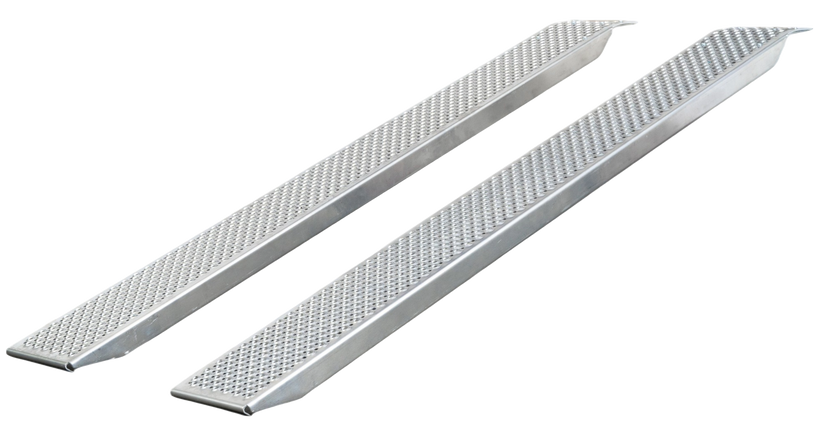

Ramps - straight - 200cm - set of 2 plates - 1000KG

Description

💡This length is ideal for a loading height of 50 cm.

Straight high-quality aluminum loading ramps with a length of 200cm for use on light trucks and trailers.

Features

• TüV approved
• Material: aluminum
• Tread: anti-slip
  • Suitable for all types of tires and tracks
  • Perforated surface with 3D anti-slip profile
• Length: 200 cm
• Width: 26 cm (1 plate)
• Load capacity per plate: 500 KG
• Load capacity per set: 1000 KG
• Attachment: rest-on lip

How to choose the right loading ramp?

To determine the correct loading ramp or set of loading ramps, a number of factors are decisive.

For the correct load capacity, we take into account:
The length of the wheelbase (distance between the front and rear axles of the vehicle);
The weight of the vehicle to be moved.

To determine the correct length, we recommend the following formula:

• L = H / C x100
• L = Length
• H = Height
• C = % incline

Please note: An angle of inclination of 16.5° should not be exceeded. This is equivalent to a gradient of 30%.
We allow a tolerance for the loading height of +/- 100mm

Example:

• Length = (H = 750 mm / C = 30) X 100 = 2500 mm
• Length = (H = 850 mm / C = 30) X 100 = 2833 mm
• Length = (H = 650 mm / C = 30) X 100 = 2166 mm

Specifications

• Delivery time if not in stock: 1 week
