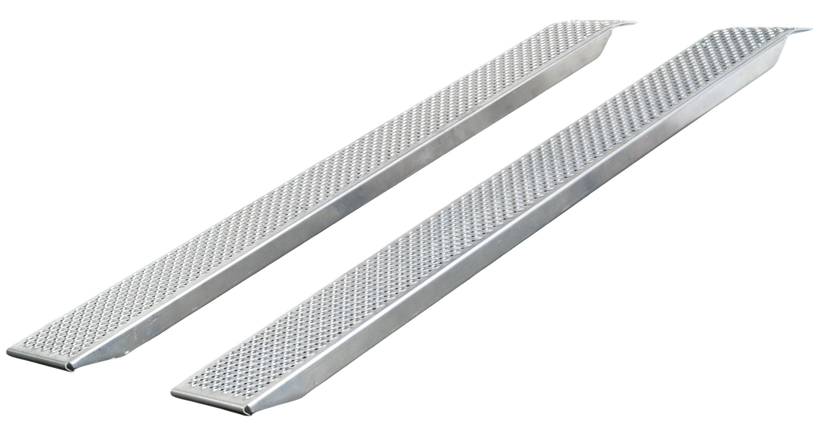

Ramps - straight - 200cm - set of 2 plates - 400KG

Description

💡This length is most suitable for a loading height of 50 cm.

Straight high-quality aluminum loading ramps with a length of 200cm for use on light trucks and trailers.

Features

• TüV approved
• Material: aluminum
• Tread: anti-slip
  • Suitable for all types of tires and tracks
  • Perforated surface with 3D anti-slip profile
• Length: 200 cm
• Width: 20 cm (1 plate)
• Load capacity per plate: 200 KG
• Load capacity per set: 400 KG
• Attachment: rest-on lip
• Weight: 9kg per set of 2 ramps

How to choose the right loading ramp?

To determine the right loading ramp or set of loading ramps, several factors are decisive.

For the correct load capacity, we take into account:
The length of the wheelbase (distance between the front and rear axles of the vehicle);
The weight of the vehicle to be moved.

To determine the correct length, we recommend the following formula:

• L = H / C x100
• L = Length
• H = Height
• C = % incline

Please note: An angle of inclination of 16.5° should not be exceeded. This is equivalent to a gradient of 30%.
We allow a tolerance for the loading height of +/- 100mm

Example:

• Length = (H = 750 mm / C = 30) X 100 = 2500 mm
• Length = (H = 850 mm / C = 30) X 100 = 2833 mm
• Length = (H = 650 mm / C = 30) X 100 = 2166 mm

Specifications

• Delivery time if not in stock: 2-4 days
