Lighting cable - 13-core - per 1m

Description

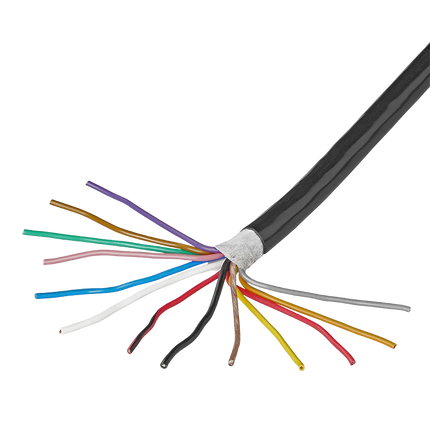

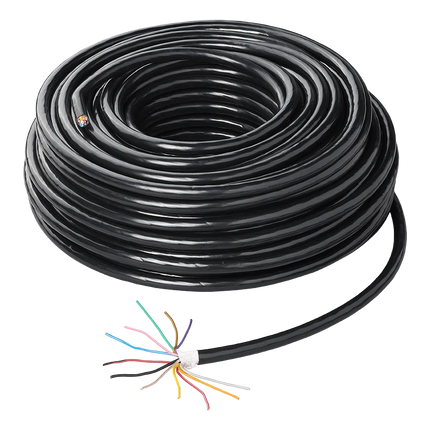

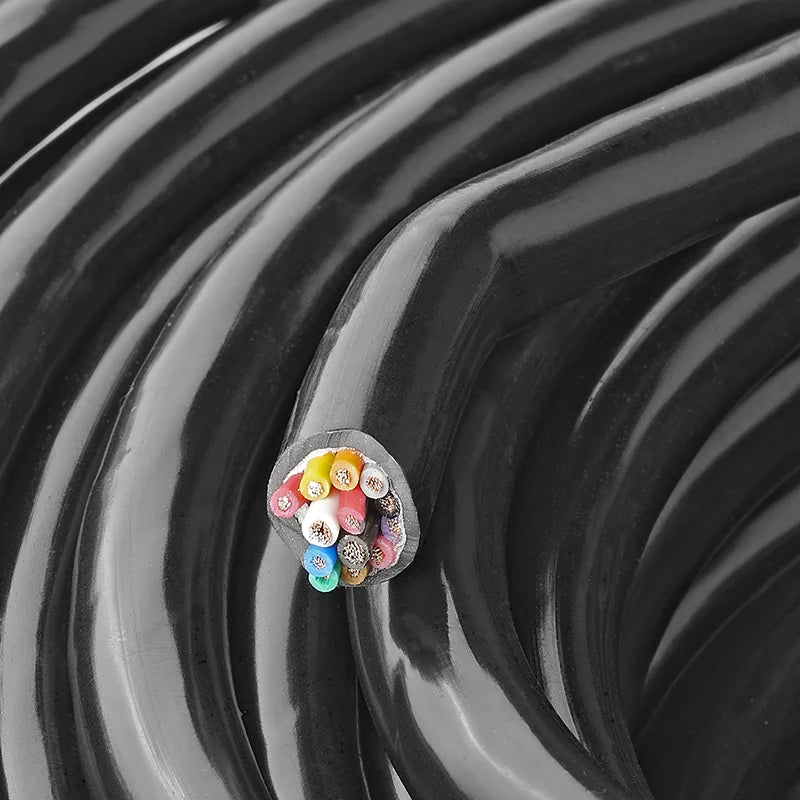

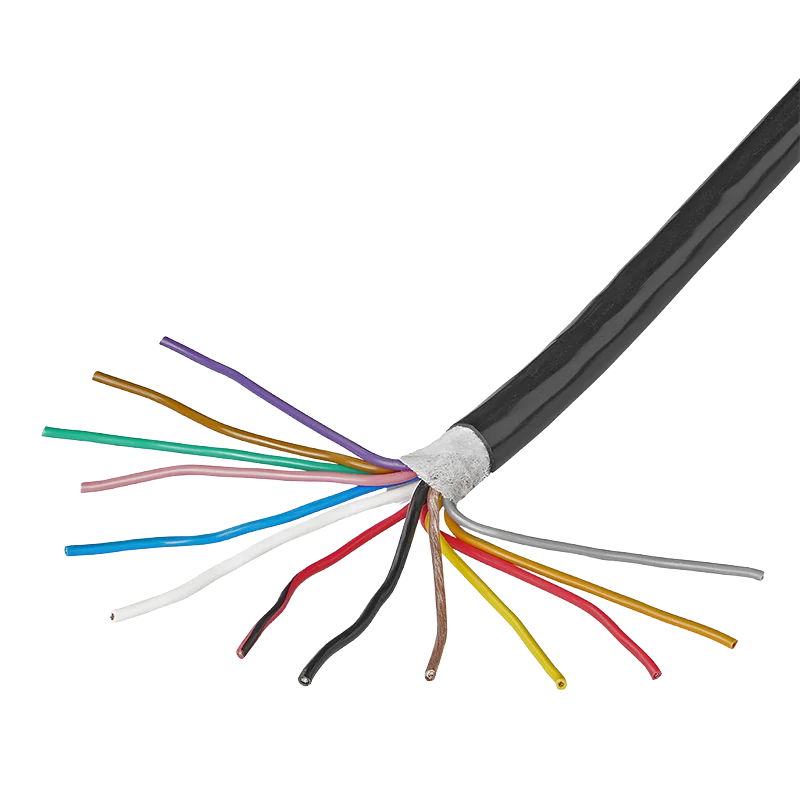

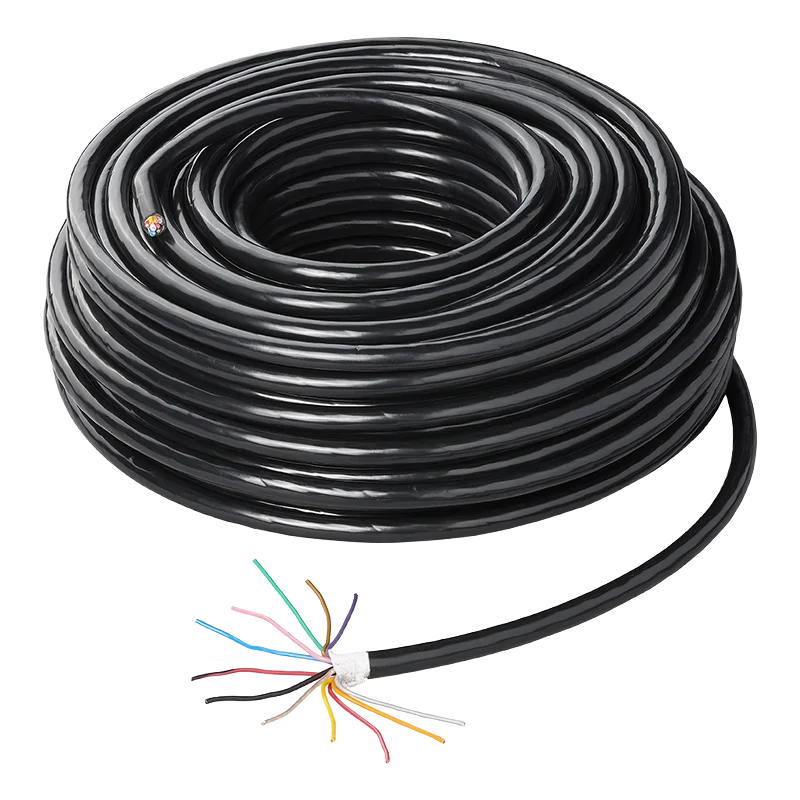

This 13-core lighting cable (11×0.75 mm² + 2×1.5 mm²) is perfect for connecting trailer lighting. The sturdy cable sheath offers protection against wear and tear and weather influences, while the different wire thicknesses ensure a reliable connection of all functions, including fog lights and additional lighting. Ideal as a durable trailer cable and reliable 13-pin lighting cable for trailers or caravans.

Technical information

• Length: per 1m
• Cable diameter: 13 mm
• Number of cores: 13 (11x 0.75 mm & 2x1.5 mm)
• Cable thickness: 11 mm
• Core colors: yellow, blue, white, dark green, green/white, red, red/white, green/yellow, blue/yellow, yellow/red, black (ground)
• Suitable for
  • 30W/60W at 12V
  • 60W/120W at 24V

Specifications

• Delivery time if not in stock: 2-4 days
