Torsion axle - 1050 KG - VG10-M - 125cm - 25°

Description

Torsion axle Knott 750kg unbraked with a pad size of 125cm and flange size 162cm with compact bearings.

The 25° suspension angle is achieved at 2x the nominal full load.

This axle is often suitable for old Weytens trailers built between 1980 and 2000.

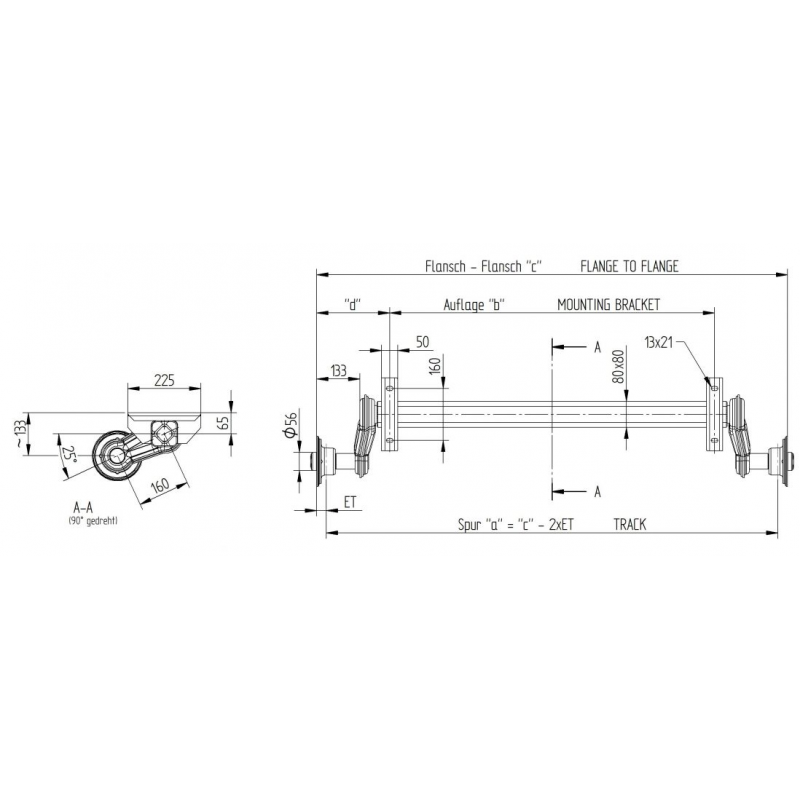

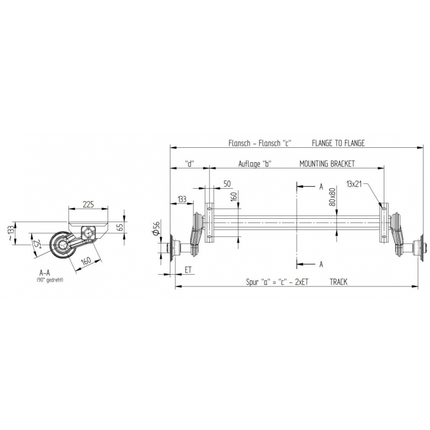

The plate with which the axle is mounted under the box is 60 mm ( F ) x 225 mm ( K ) the mounting holes ( I ) are 160 mm apart centre to centre. The dimension of the slotted holes is 13 x 21 mm. The axle body of the Knott axle is square 60 mm. Suitable for rims with a bulge (ET value) of 0-45 mm.

Technical information

Specifications

• Delivery time if not in stock: 2-5 days

Pros and cons

• Including mounted flange
• compact bearings
