Tension lock - BV 90-1

Description

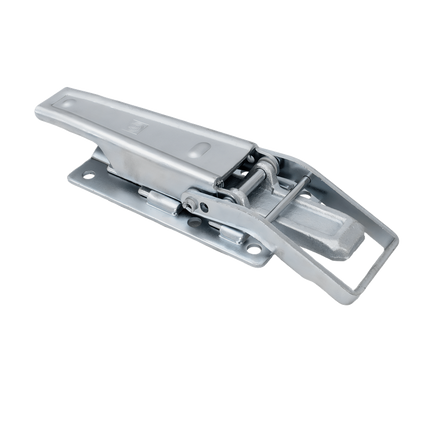

WINTERHOFF BV 90-1 side hinge coupling for tilting side trailer
Side hinges are mounting elements used to connect moving parts in vehicles, mainly in the sides of trucks, trailers and semi-trailers. They allow the sides to open and close, which is crucial for easy access to the load and safe loading and unloading. These hinges must be strong to withstand weight and frequent use, ensuring the stability and safety of the goods being transported.

The BV 90-1 hinge from WINTERHOFF is characterized by high load resistance, which guarantees a long service life and reliability, even under intensive use. The structure of the tow bar is designed to ensure stability and safety, which is crucial when transporting various materials.

The installation of this hinge is simple and fast, allowing the sides to be easily assembled and disassembled, which greatly facilitates the loading and unloading process. The WINTERHOFF BV 90-1 side hinge is therefore an irreplaceable solution for anyone looking for a reliable and functional coupling for a tiltable trailer side.

Technical information

• Brand: Winterhoff
• Model: BV 90-1
• TUV Certificate
• Type: surface-mounted tension lock
• Material: steel, galvanized
• Tensile strength: 1100 daN
• Length: 265 mm
• Width: 80 mm

Specifications

• Delivery time if not in stock: 3-5 days
